Infrared Karaoke Microphone

model:IR-360

Infrared Wireless Microphone

Description:

Stylish and Light Design for Pendant Transmitter ? Maximum 3 x High Efficiency IR Sensors for Larger Working Range (up to 200 ㎡) ? USB Recharging Features for Pendant Transmitter Recharging Features for Receiver (built-in 2x USB port)

缩略图

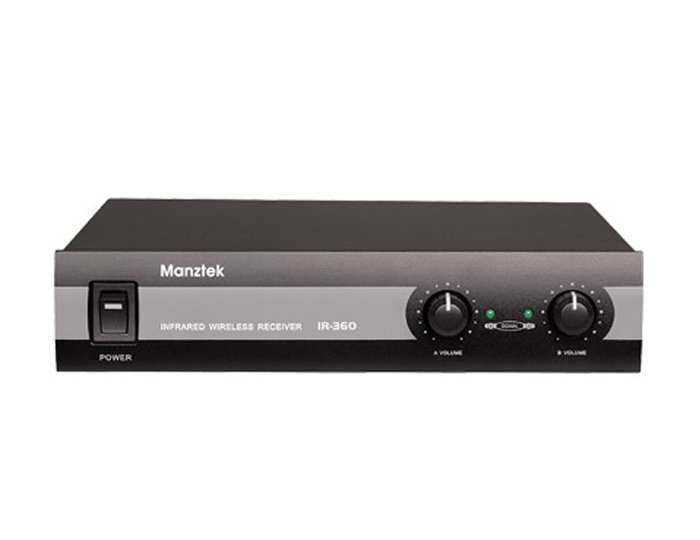

IR-360 SYSTEM SPECIFICATIONS

  • Modulation Mode

    (IR)Frequency Modulated

  • CarrierFrequency Range

    CHA 2.06 MHz，CHB 2.56 MHz

  • Channels

    Two channel

  • Audio Frequency response

    75Hz~15KHz ±3dB

  • DynamicRange

    100dB

  • Max. Deviation Range

    ±45KHz(with level limiting)

  • T.H.D.

    < 0.5% @ 10KHz Deviation

  • S/N

    >100dB

  • WorkingRange

    > 100㎡(15m line of sight )

  • RF Carrier Stability

    ± 0.005%（-10℃-40℃）

  • Receiver Main Frame Size

    1/2 19” EIA Standard 1-Rack Unit

  • Receiver Power Supply

    DC12V,1000mA

IR-360H SYSTEM SPECIFICATIONS

  • Sound Cartridge

    Uni-directional Dynamic

  • Carrier Frequency

    2.06 MHz / 2.56MHz

  • Battery

    2 x AA Size

  • Working Time

    7 Hrs(Lo Output)/4 Hrs(Hi Output)

  • Transmitter Size

    (Head)50 X(L)245mm

  • Transmitter Weight

     280g

  • Recharging Time

    5 Hrs (2000mAh,Ni-Mh rechargeable battery)

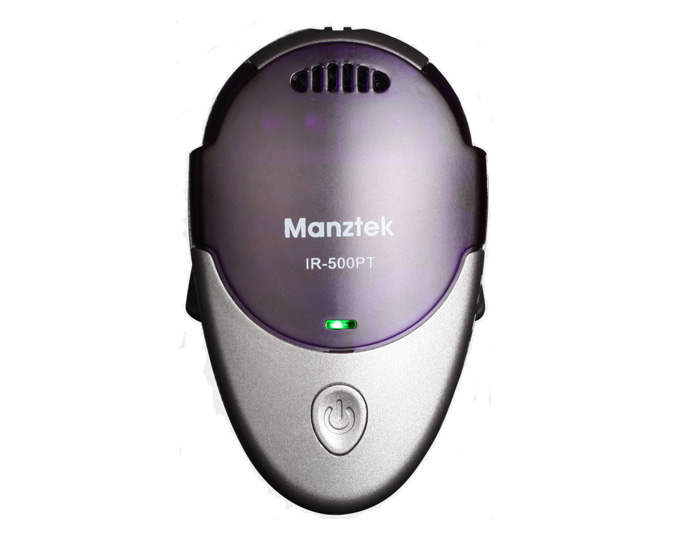

IR-500PT SYSTEM SPECIFICATIONS

  • Wireless transmission system

    Infrared (wavelength 850nm)

  • Pickup sensor

    Capacitive electret sound head ECM

  • Battery operating time

    6 hours

  • Battery

    1 section AA size rechargeable lithium ion battery (3.7V)

  • Charging mode

    Mini USB charger or charging

  • size

    51mmx84mmx26mm

  • Input interface

    3.5mm Mic

  • Compatibility

    Compatible with MANZTEK infrared IR full range receiving equipment

Compatible Unit & Parts

  • Handheld Mic

  • Pendent Mic
